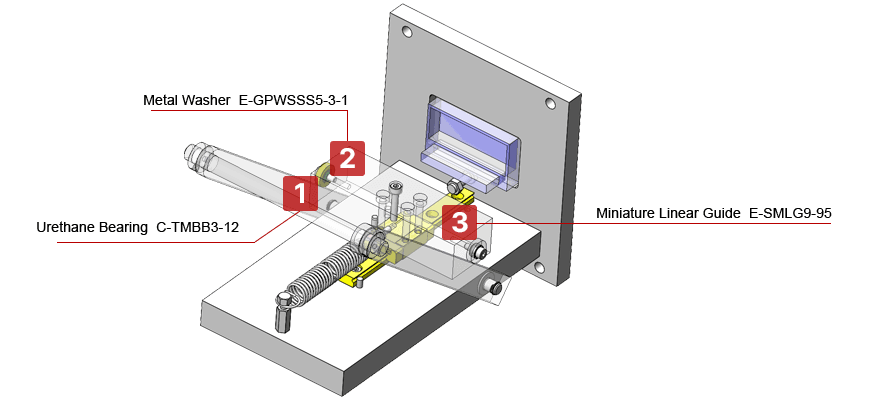

Resin Case Press-Fit Jig

Specifications and Features

Purpose/Function

Assembly/Processing

Pressing using lever operation
A manual mechanism using a lever-type operation to press a resin product into a jig.
Urethane rollers are selected to absorb lever operating force and prevent dust generation from friction.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Urethane Bearing	C-TMBB3-12	Inner diameter d(φ): 3 Outer diameter D(φ): 12 Hardness: Shore A90 Material: Steel (bearing), Urethane (surface)	2	SGD 1.68/Unit
②	Metal Washer	E-GPWSSS5-3-1	Outer diameter D(mm): 5 Inner diameter V(mm): 3 Material: Stainless steel Surface treatment: None RoHS10 compliant	2	SGD 0.33/Unit
③	Miniature Linear Guide	E-SMLG9-95	Mounting height H(mm): 10 Length L(mm): 95 Rail type: Standard rail Guide rail material: Stainless steel Block material: Stainless steel	1	SGD 23.70/Unit

※ Kindly check MISUMI eCatalog for latest information.
