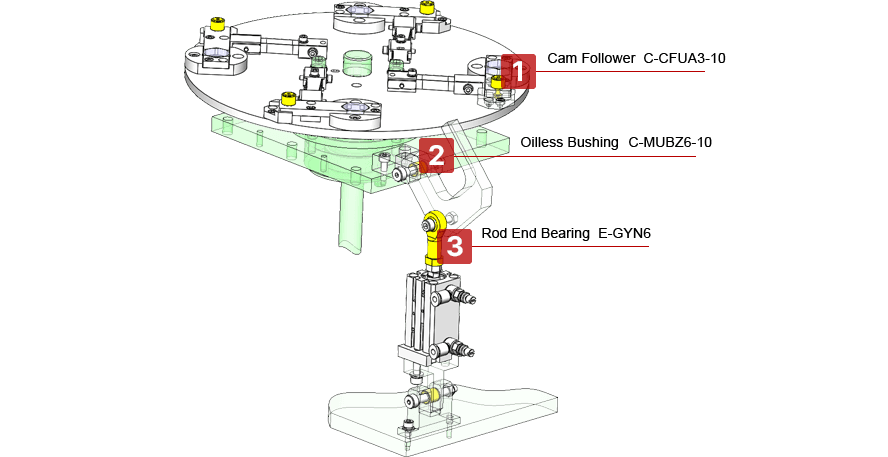

Work Clamp Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp Drive/Actuation

Space-saving mechanism that clamps and unclamps the workpiece by pressing the cam follower from the horizontal side.
Use a plate spring to clamp the workpiece and a link mechanism to insert and remove the support block on the turntable.
Unclamp by applying the cam follower mounted on the turntable.
Float using a cam follower in the unclamp mechanism.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Cam Follower	C-CFUA3-10	Screw part nominal (M)(mm): M3×0.5 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 0.94 Allowable rotational speed (rpm): 26320	4	SGD 8.62/Unit
②	Oilless Bushing	C-MUBZ6-10	Inner diameter d(φ): 6 Total length L(mm): 10 Material: Brass Operating temperature range (°C): -40 to 150	2	SGD 2.64/Unit
③	Rod End Bearing	E-GYN6	Main body material: Steel Connection screw M: M6×1.0 Connection screw direction: Female thread	1	SGD 1.85/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Cam Followers Crown,Hex Socket SGD 6.60/Unit Shipping: Same Day

2 Oil Free Bushings Copper Alloy Straight I.D.F7/O.D.m6 SGD 2.11/Unit Shipping: Same Day

3 Rod End Bearings Tapped SGD 1.80/Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
