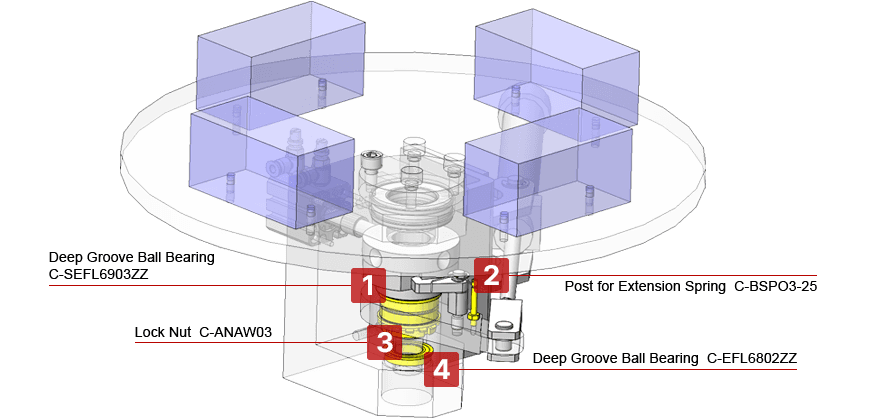

Intermittent Rotational Drive by Air Cylinder
Specifications and Features
- Purpose/Function
-
Transport/Movement
Drive/Actuation
Intermittent transmission by rotating the workpiece 90 degrees in one direction.
Pull the cylinder to rotate the turntable 90 degrees, then extract the stop pin with the thin cylinder to determine its position.
When the driving cylinder is pressed, the rotary table is held in place by the ratchet mechanism.
Pull the cylinder to rotate the turntable 90 degrees, then extract the stop pin with the thin cylinder to determine its position.
When the driving cylinder is pressed, the rotary table is held in place by the ratchet mechanism.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Deep Groove Ball Bearing | C-SEFL6903ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Stainless steel Basic dynamic load rating (N): 3910 Allowable rotational speed (RPM): 8000 |
2 | SGD 5.60/Unit |
| ② | Post for Extension Spring | C-BSPO3-25 | Post diameter D(φ): 3 Total length L(mm): 25 Material: Steel Surface treatment: Chromate bright finish |
1 | SGD 1.04/Unit |
| ③ | Lock Nut | C-ANAW03 | Screw nominal (M): M17X1.0 Material: Steel Surface treatment: None Screw type: Metric (fine) thread |
1 | SGD 3.80/Unit |
| ④ | Deep Groove Ball Bearing | C-EFL6802ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 1451 Allowable rotational speed (RPM): 8000 |
1 | SGD 2.91/Unit |
※ Kindly check MISUMI eCatalog for latest information.
