Intermittent Rotation Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

Index table of cylinder drive

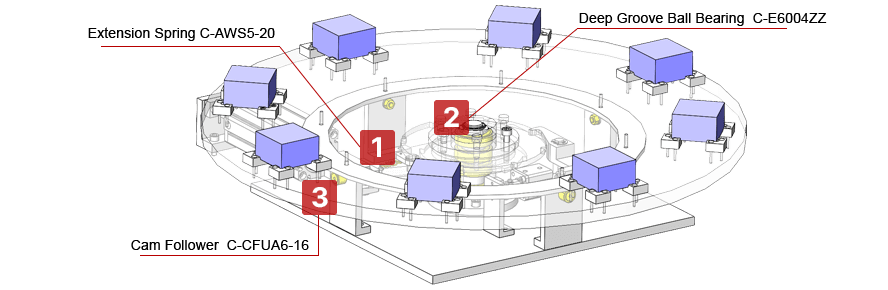

Rotating index table with 8 positions for work processing.
When the cylinder is pushed out, the ratchet hook engages the ratchet gear, the index table rotates, and the tension spring acts to always press the ratchet hook against the ratchet gear.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Extension(Tension) Spring	C-AWS5-20	Coil outer diameter OD(φ): 5 Free length Lf(mm): 20 Material: Spring steel Allowable load P2(N): 8.53	1	SGD 0.38/Unit
②	Deep Groove Ball Bearing	C-E6004ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 6580 Allowable rotational speed (RPM): 8000	4	SGD 1.64/Unit
③	Cam Follower	C-CFUA6-16	Screw part nominal (M)(mm): M6x1.0 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 3.59 Allowable rotational speed (rpm): 17500	4	SGD 7.51/Unit

※ Kindly check MISUMI eCatalog for latest information.
