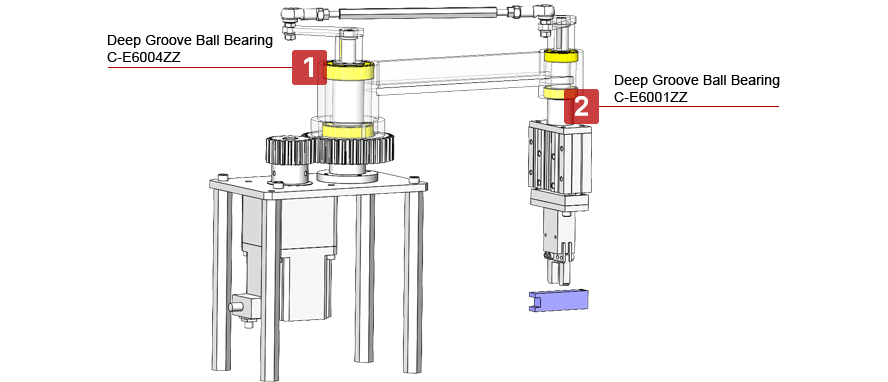

Work Inversion Transfer Mechanism 2

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

Rotates the work flowing on the conveyor 90 degrees and transfers it to the next process.
When the chuck mechanism rotates 90 degrees via a link and the transfer direction remains the same, the work piece rotates 180 degrees.
The main shaft and the link arm of the main shaft are fixed at the center of rotation, and the chuck at the end of the rotation enables lifting and rotation.
Action: Chuck lowering → Workpiece gripping → Chuck raising → 90-degree transfer rotation, 90-degree workpiece rotation → Chuck lowering → Workpiece opening → Chuck raising

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6004ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 6580 Allowable rotational speed (RPM): 8000	2	SGD 1.64/Unit
②	Deep Groove Ball Bearing	C-E6001ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 3570 Allowable rotational speed (RPM): 8000	2	SGD 1.09/Unit

※ Kindly check MISUMI eCatalog for latest information.
