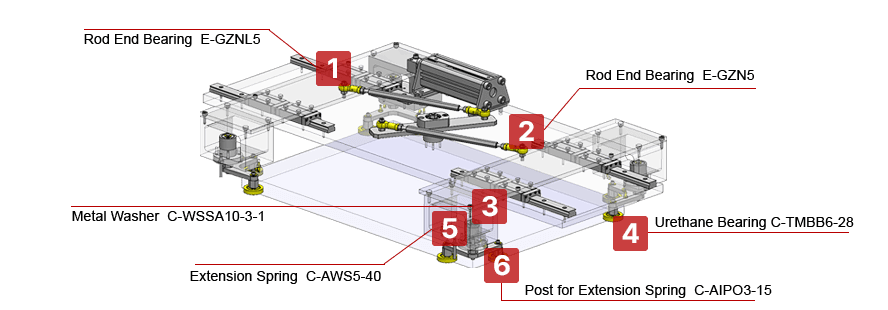

Pallet Centering Mechanism 1

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp Drive/Actuation

4-way simultaneous clamping using cylinder and link mechanism.
Centering of pallets returned by roller conveyor at the working position.
Environment/Operability: A line is available that can detect the pallet with a photoelectric sensor and stop it on the conveyor, eliminating the need for a pallet retraction mechanism on the transfer device.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Rod End Bearing	E-GZNL5	Main body material: Steel Connection screw M: M5×0.8 Connection screw direction: Left-hand thread	2	SGD 1.34/Unit
②	Rod End Bearing	E-GZN5	Main body material: Steel Connection screw M: M5×0.8 Connection screw direction: Right-hand thread	2	SGD 1.34/Unit
③	Metal Washer	C-WSSA10-3-1	Outer diameter D(mm): 10 Inner diameter V(mm): 3 Material: Steel Surface treatment: Trivalent chromate bright finish	24	SGD 0.38/Unit
④	Urethane Bearing	C-TMBB6-28	Inner diameter d(φ): 6 Outer diameter D(φ): 28 Hardness: Shore A90 Material: Steel (bearing), Urethane (surface)	8	SGD 1.68/Unit
⑤	Extension(Tension) Spring	C-AWS5-40	Coil outer diameter OD(φ): 5 Free length Lf(mm): 40 Material: Spring steel Allowable load P2(N): 8.53	4	SGD 0.40/Unit
⑥	Post for Extension Spring	C-AIPO3-15	Post diameter D(φ): 3 Total length L(mm): 15 Material: Steel Surface treatment: Chromate bright finish	8	SGD 1.22/Unit
