Extended Stroke Toggle Clamping Mechanism

Specifications and Features

Purpose/Function

Positioning/Clamping Assembly/Processing

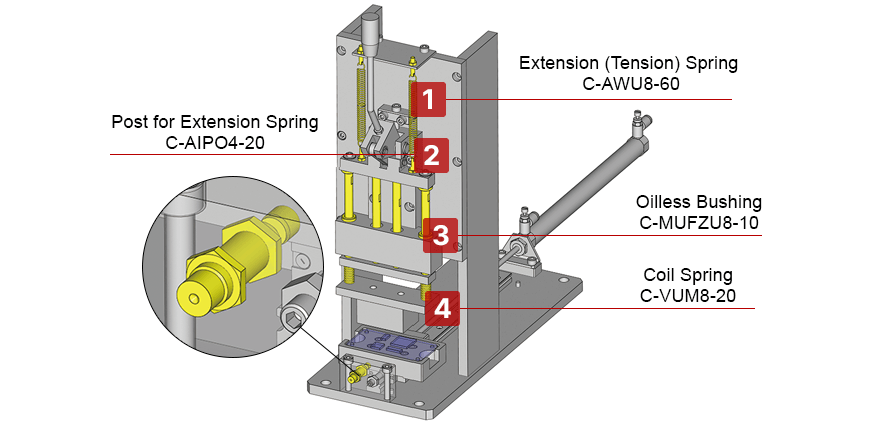

Extended stroke toggle clamping mechanism combining and utilizing a shaft and spring
A typical structure combining a shaft and a spring
Suitable for press machines with long strokes and small operating force, widely used in assembly and processing industries.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Components	Economy Model Number	Specification	Quantity	Unit Price
①	Extension(Tension) Spring	C-AWU8-60	"Material: Piano wire Coil outer diameter: 8mm Free length: 60mm Spring constant: 0.35N/mm	2	SGD 0.42/Unit
②	Post for Extension Spring	C-AIPO4-20	Outer diameter: 4mm Inner diameter: 20mm	4	SGD 1.32/Unit
③	Oilless Bushing	C-MUFZU8-10	Inner diameter: 8mm Outer diameter (φ): 10mm Total length: 10mm	2	SGD 7.38/Unit
④	Coil Spring	C-VUM8-20	Coil inner diameter: 8mm Free height: 20mm Spring constant: 2.94N/mm	2	SGD 0.72/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Tension Springs Medium Light / Medium Load O.D.3-10 SGD 0.38/Unit Shipping: Same Day

2 Posts For Tension Springs Hole Type SGD 1.22/Unit Shipping: Same Day

3 Oil Free Bushings Copper Alloy Shouldered I.D.E7/O.D.r6 SGD 2.78/Unit Shipping: Same Day

4 Round Wire Coil Springs, Defection I.D. Referenced, Stainless Steel, Heavy Load SGD 0.54/Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
