Overload Relief Shutter

Specifications and Features

Purpose/Function

Setup Body/Structure

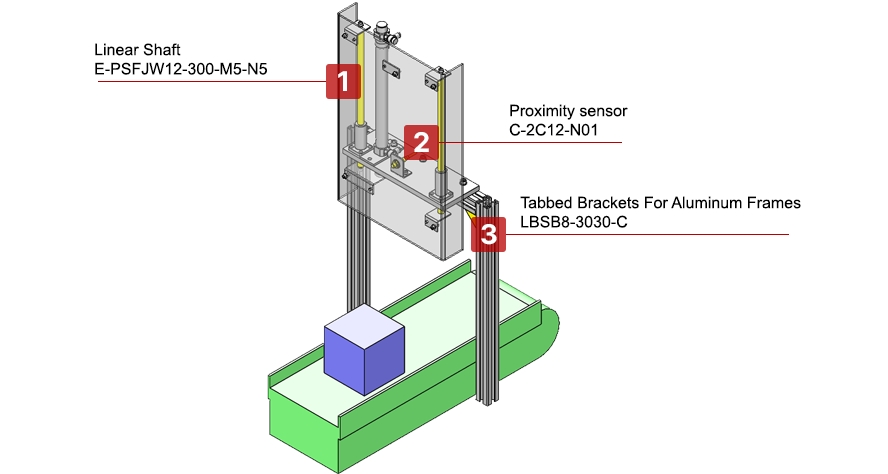

A device used to reduce overload on workpieces moving through automated conveyors. The cover is lightweight, enabling smooth movement as it falls by gravity alone.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Shaft	E-PSFJW12-300-M5-N5	Shaft diameter D(φ): 12 Length L(mm): 300 Both ends female thread size: M5 Material: Steel Surface treatment: Hard chrome plating	2	SGD 7.60/Unit
②	Proximity Sensor	C-2C12-N01	Detection distance L1(mm): 4.0mm Head size W(mm): M12X1.0 Output type: NPN(ON) Power and output spec: 3-wire system	1	SGD 15.98/Unit
③	Tabbed Brackets For Aluminum Frames	LBSB8-3030-C	Groove width: 8mm Frame size: 3030 Frame series: European standard	2	SGD 0.83/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Linear Shafts Both Ends Tapped SGD 4.10 /Unit Shipping: 7 Days

2 Proximity Sensor, Long Detection Range, Shielded, Bend Tolerance, Oil Resistant Cable SGD 15.98 /Unit Shipping: Same Day

3 Tabbed Brackets For Aluminum Frames SGD 0.38 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
