Pallet Positioning Mechanism

Specifications and Features

Purpose/Function

Setup Body/Structure

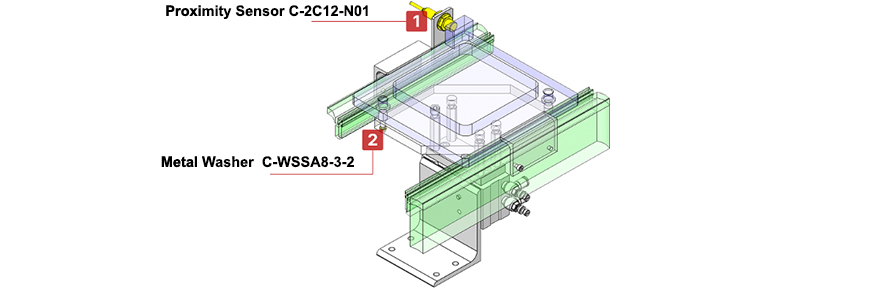

A mechanism that determines the position of a pallet by securely fixing it with a clamping structure.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Proximity Sensor	C-2C12-N01	Detection distance L1(mm): 4.0mm Head size W(mm): M12X1.0 Output type: NPN(ON) Power and output spec: 3-wire system	1	SGD 15.98/Unit
②	Metal Washer	C-WSSA8-3-2	Outer diameter D(mm): 8 Inner diameter V(mm): 3 Thickness T(mm): 2 Material: Steel Surface treatment: Trivalent chromate bright finish	2	SGD 0.38/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Proximity Sensor, Long Detection Range, Shielded, Bend Tolerance, Oil Resistant Cable SGD 15.98 /Unit Shipping: Same Day

2 Flat Washers SGD 0.35 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
