Curtain-Type Abnormality Detection Cover

Specifications and Features

Purpose/Function

Setup Body/Structure

When external force is applied to the curtain cover, which features non-fixed oscillating detection, the proximity sensor reacts, causing the device to stop.The cover includes a detection function that automatically stops the device when touched by a worker or when there is a discrepancy in the workpiece.As a simple detection cover, it is designed as a mechanism that responds to touch and movement without being fixed.

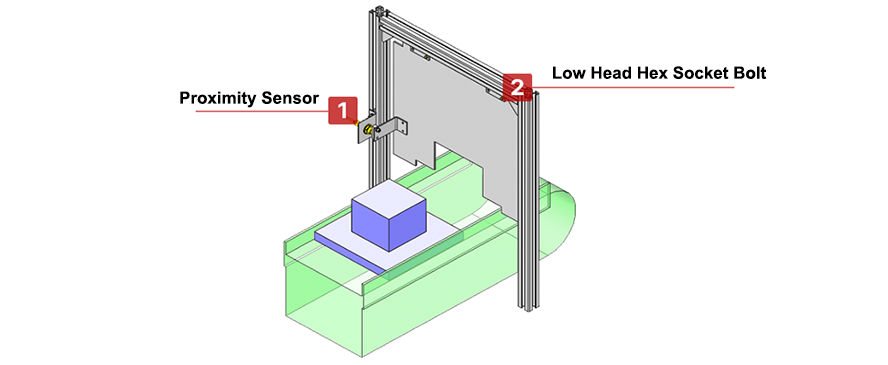

curtain-type-abnormality-detaction-cover

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Proximity Sensor	C-2C12-N01	Detection distance L1(mm): 4.0mm Head size W(mm): M12X1.0 Output type: NPN(ON) Power and output spec: 3-wire system	1	SGD 15.98/Unit
②	Low Head Hex Socket Bolt	E-GCBSST6-12	Screw nominal (M): 6 Length L(mm): 12 Material: Stainless steel RoHS10 compliant	40	SGD 0.19/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Proximity Sensor, Long Detection Range, Shielded, Bend Tolerance, Oil Resistant Cable SGD 15.98 /Unit Shipping: Same Day

2 Hex Socket Low Head Cap Screw - Stainless Steel, Small Box / Single Item Sale[RoHS Compliant] SGD 0.04 /Unit Shipping: 4 Days

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
