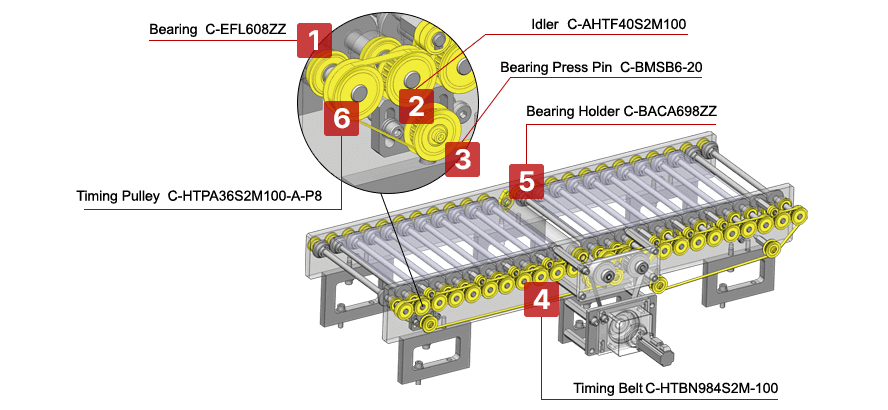

Pallet Centering Mechanism 2

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

Centering mechanism that uses an air cylinder at the working position to adjust the product's centering in conjunction with a connecting rod structure.
Often used in transfer lines where there are requirements for product transfer location.
Facilitates connection to other work positions by adjusting the position during product transfer.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Bearing	C-EFL608ZZ	Inner diameter: 8mm Outer diameter: 22mm Width: 7mm	2	SGD 1.71/Unit
②	Idler	C-AHTF40S2M100	Usable belt width: 10mm Number of teeth: 40 Tooth type: S2M	1	SGD 13.16/Unit
③	Bearing Press Pin	C-BMSB6-20	Outer diameter: 6mm Length: 20mm	1	SGD 1.46/Unit
④	Timing Belt	C-HTBN984S2M-100	Belt nominal width: 100 (10mm) Belt circumference length: 984mm Tooth type: S2M	1	SGD 4.07/Unit
⑤	Bearing Holder	C-BACA698ZZ	Bearing model number: 698ZZ Bearing inner diameter: 8mm Mounting method: Fixed ring type Thrust ring: Present	1	SGD 5.60/Unit
⑥	Timing Pulley	C-HTPA36S2M100-A-P8	Usable belt width: 10mm Number of teeth: 36 Shaft hole diameter d: 8mm Tooth type: S2M	1	SGD 7.00/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Flanged Small Ball Bearings SGD 1.38 /Unit Shipping: Same Day

2 Idlers S2M SGD 10.50 /Unit Shipping: Same Day

3 Bearing Shaft Screws SGD 1.02 /Unit Shipping: Same Day

4 Timing Belts S2M SGD 0.41 /Unit Shipping: Same Day

5 Bearings With Housing Flanged Lightweight SGD 5.60 /Unit Shipping: Same Day

6 Timing Pulleys S2M SGD 5.50 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
